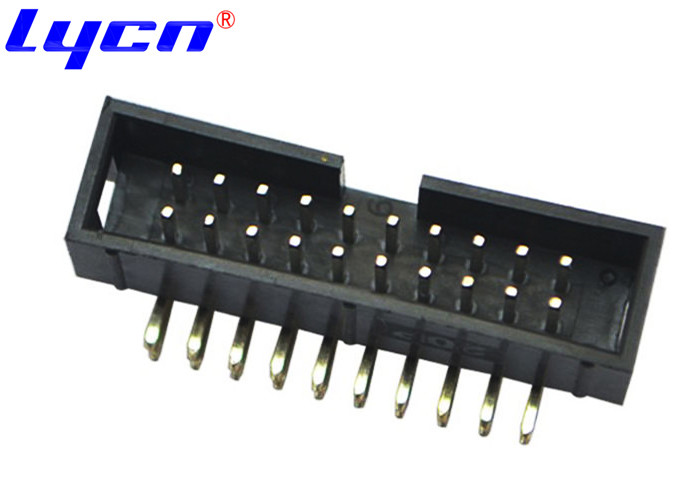

180 Degree DIP 2.54Mm Box Header 90 Degree Bend 1000mohm Min Resistance

Brand Name : LYCN

Model Number : 301XXXS

Certification : UL/SGS/ROHS

Place of Origin : Guangdong, China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 8000000K pcs

Delivery Time : 20-25Days

Packaging Details : Tray/Tube

Tail & Mounting Style : 180° Straight Dip

Pitch : 2.54mm

Current Rating : 3.0 AMP

Insulator Material : PA6T/PA66/PA9T/LCP

Number of Contacts : 8 Pin-64 Pin

Color : Black

Contact Now

90 Degrees Bend/ 180° DIP 2.54 mm Pitch Box Header 1000mΩ Min Resistance

Product Application

1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.

2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.

3. It is usually used to transmit control signals and weak current.


1. Insulation Resistance 1000mΩ Min
2. Contact Resistance 20mΩ Max
3. Withstand Voltage 1000V AC/DC
4. Contact Plating

AU over Ni

5. Operation Temperature ﹣40℃ to +105℃
6. Sample 10-20pcs Free samples


1. According to the spacing: 1.0mm, 1.27mm, 2.0mm, 2.54mm.

2. No. of pins: 2~80 pins.

3. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column.

Why choose us

1. Experience advantage
We own a professional team of more than 500 people, 15 years of industry experience and professional team equipped. We are a collection of design, development, production, sales as a whole part of the professional manufacturers. Quality, reliable products and satisfactory service are provided for our customers by us.
2. Equipment advantage
Our factory occupied area is about 15000 square meters. There are more than 300 sets of precision connector production equipment, 16 sets of precision plastic injection machine, 80 sets of precision high-speed punch, at least 100 sets of various plastic models and more than 200 sets of hardware terminal models. We have advanced technology and equipment to guarantee product quality !
3. The Advange of After Sale Service
Our senior r & D team can guarantee the quality. We will deliver the goods on time within the agreed delivery time for you to avoid worry. We provide pre-sale, sale and after-sales service. If you have any questions, we will deal with them in 24 hours.

180 Degree DIP 2.54Mm Box Header 90 Degree Bend 1000mohm Min Resistance


1. What's the delivery time?

The delivery time will depends on the quantity that you need, which usually takes 7-14 days.
2. How to get the price faster?

Contact with us, give us your requirements, of course it's better that you can give picture or drawing or original No.
3. How To Order?

1. Please tell us what model and quantity you need; 2. Then we will make a PI for you to confirm the order details; 3. When we confirmed everything, can arrange the payment; 4. Finally we deliver the goods within the stipulated time.

Product Tags:

180 Degree 2.54Mm Box Header


DIP 2.54Mm Box Header


1000mohm Box Header Connector
